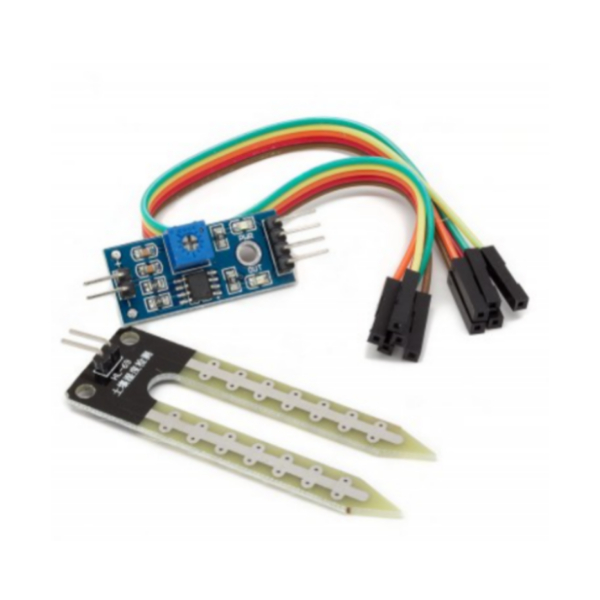

Soil Moisture Sensor Module

Soil Moisture Hygrometer Detection Humidity Sensor Module

Introducing the Soil Hygrometer Humidity Detection Module, a crucial tool for accurately monitoring soil moisture levels. Designed for high sensitivity to ambient humidity, this module is perfect for home gardening and automated watering systems, ensuring optimal plant care without constant manual intervention.

Equipped with two probes, the sensor measures the volumetric water content in the soil. As moisture levels change, so does the soil’s electrical conductivity. When the soil is dry, it exhibits higher electrical resistance, resulting in a high-level output from the module. Conversely, when the soil is moist, it conducts electricity more efficiently, leading to a low-level output. This functionality enables precise measurement and monitoring of moisture levels, ensuring timely watering when necessary.

Specifications:

• Sensitivity adjustable using a potentiometer
• Operating voltage: 3.3V – 5V
• Dual output mode: digital output for simplicity, analog output for precise measurements
• Fixed bolt hole for easy installation
• Compact PCB size: 3cm * 1.6cm
• Features power indicator (red) and digital switching output indicator (green)
• Equipped with LM393 comparator chip for stability

Interface Description (4-wire):

1. VCC: 3.3V – 5V
2. GND: Ground
3. DO: Digital output interface (0 and 1)
4. AO: Analog Output Interface

The threshold value can be easily adjusted via the potentiometer. The DO port outputs a high signal when soil humidity exceeds the set threshold, while the analog output (AO) provides more precise moisture level values through the AD converter.

Features:

• Dual output mode: analog output for accuracy, digital output for simplicity
• Fixed bolt hole for easy installation
• Power indicator (red) and digital switching output indicator (green)
• Utilizes LM393 comparator chip for stability
• Operating Voltage: 3.3V – 5V

Specification:

Ensure optimal soil moisture levels for your plants with the Soil Hygrometer Humidity Detection Module, your reliable partner in gardening and plant care.

Package Includes

• 1 x Soil Moisture Sensor Kit
